Revision surgery for occlusal correction in facial trauma is a highly specialized and technically demanding aspect of reconstructive surgery. While contemporary practices in primary fracture management have reduced the incidence of posttraumatic malocclusion, circumstances such as delayed treatment, insufficient fracture reduction, overlooked injuries, and complex comminution continue to create challenging cases in which revision becomes inevitable. Effective secondary correction of occlusion involves a deep understanding of both trauma principles and orthognathic concepts, rigorous diagnostic steps and precise surgical technique.
Key points
-
•
Accurate Diagnosis : A comprehensive clinical examination, detailed imaging with cone-beam computed tomography or 3 dimensional computed tomographic scans, and model analysis are important for detecting the precise nature of the malocclusion and bony deformities.
-
•
Timing : Allowing adequate healing time—yet acting early enough to minimize further bony consolidation—can help optimize results. Typically, 6 to 12 months of healing give a clear picture of residual deformities.
-
•
Multidisciplinary Approach : Surgeons, orthodontists, prosthodontists, and other specialists must coordinate to create a treatment plan that addresses functional, esthetic, and psychosocial aspects.
-
•
Surgical Techniques : Procedures may range from simple hardware adjustment to complex orthognathic treatment plans with emphasis on rigid internal fixation using stable plating systems or other devices and meticulous handling of vascular compromised soft tissue.
-
•
Long-Term Follow-Up : Given the complexity and potential for relapse, patients need regular evaluations to monitor occlusal stability, normal temporomandibular joint function, and possible hardware complications.
Abbreviations
| CBCT | cone beam computed tomography |
| CT | computed tomography |
| 3D | 3 dimensional |
| RIF | rigid internal fixation |
| TMJ | temporomandibular joint |
| VSP | virtual surgical planning |
Introduction
Facial trauma is a common and challenging aspect of clinical practice in oral and maxillofacial surgery. Injuries to the craniofacial skeleton, particularly those involving the maxilla and mandible, can lead to malunion, nonunion, persistent deformities, and compromised occlusion if not identified and treated appropriately in the acute phase. When the initial surgical management of fractures fails to restore optimal bone reduction and a stable occlusal relationship, patients may present with pain, masticatory inefficiency, speech impediments, esthetic disharmony, or progressive temporomandibular joint (TMJ) degeneration months to years after the primary fracture repair. , Delayed presentation remains common because multi-system trauma initially takes priority, facial fractures are often missed, intraoperative dental interferences are disregarded, or postoperative events such as bruxism and hardware failure create secondary displacements. ,, In such circumstances, revision surgery becomes necessary to correct the residual deformities and restore both function (mastication and speech) and facial esthetics. ,,,
Occlusal correction in patients with facial trauma frequently involves the re-establishment of a harmonious maxillomandibular relationship, realignment or repositioning of bone segments, and the possibility of grafting or hardware revision. Revision surgery for occlusal correction in posttraumatic facial deformities is generally more demanding, technique sensitive and has a lower margin for error than primary surgery. Moreover, patients are typically dealing with scarred soft tissues, altered bony architecture, and possibly compromised vascularity. ,, These challenges mandate a meticulous, multidisciplinary approach involving oral and maxillofacial surgeons, orthodontists, and other relevant specialists. ,,
Despite significant progress in maxillofacial trauma management, malocclusion remains one of the most frequently encountered complications after facial fractures. Timely, accurate reduction and fixation can minimize this risk; however, issues such as delayed primary treatment, incomplete fracture diagnosis, or poorly executed surgical approaches can compromise the final result and necessitate subsequent revision surgery. ,,, This article aims to explore the principles, techniques, and considerations surrounding revision surgery for occlusal correction in facial trauma.
Early approaches to maxillofacial fracture management
Historically, the management of facial fractures underwent a progression from closed treatment or reduction techniques and wiring to rigid internal fixation (RIF) using plates and screws. Early surgeons relied heavily on intermaxillary fixation with simple wiring techniques to hold the maxilla and mandible in a presumed proper occlusal position. Although these methods were a breakthrough at the time, complications such as malunion, infection, ankylosis, and prolonged periods of immobilization often led to suboptimal outcomes and extended patient morbidity. , By the 1950s, Gillies, Rowe, and Killey described deliberate “secondary” osteotomies to break and reset malunited fractures, often in staged operations separated by weeks of interdental fixation. , These early approaches laid the foundation for modern techniques of posttraumatic occlusal correction and incorporated orthognathic and secondary corrective surgical principles. ,
Evolution of rigid fixation and the impact on occlusal outcomes
The development of stable fixation techniques in the mid-to-late twentieth century, including miniplates and screws comprised of stainless steel or titanium, completely changed how facial fractures were approached. The introduction of RIF allowed for early mobilization, function, improved 3 dimensional (3D) control of fractured segments and a more predictable restoration of preinjury occlusion. , With the widespread adoption of rigid fixation, precise anatomic reduction and restoration of pre-injury occlusion was more easily achievable and improved the outcomes of surgery. , In the late 1960s, AO group introduced the principles of compression plating which decreased non-union rates but occasionally caused malunionized segments in an anatomically wrong position. Hence, revision surgery became a necessary in patients whose fractures were not optimally reduced or who developed secondary occlusal deformities over time. In 1998, Tatum discussed that the concept of secondary occlusal deformities is seldom isolated; instead they form part of 3D skeletal disharmony that demands simultaneous correction in all planes.
Secondary and tertiary corrective surgeries
By the late twentieth century, the concept of secondary correction of maxillofacial deformities was established. Surgeons increasingly recognized the need for staged reconstruction. If the patient had multiple injuries, needed emergent neurosurgical interventions, or faced life-threatening conditions, precise maxillomandibular alignment might have been deprioritized, thus increased the risk of postoperative malocclusion. ,, Techniques from orthognathic surgery such as Le Fort osteotomies for the maxilla or bilateral sagittal split osteotomies for the mandible were adapted to address secondary deformities. , With improved imaging modalities, especially 3D computed tomography (CT) and more advanced surgical tools such as custom cutting guides and patient specific implants, revision surgeries became more precise in targeting posttraumatic occlusal and skeletal discrepancies. ,
Contemporary multidisciplinary approaches
Modern revision procedures for occlusal correction have evolved into a meticulous and collaborative interdisciplinary efforts. Preprosthetic and orthodontic assessments, 3D planning, advanced biomaterials, virtual surgical planning (VSP) and intraoperative navigations are tools used to minimize the need for additional corrective surgeries. , These surgical tools allowed early pre-surgical planning to mirror intact anatomy, estimate bony collisions, and designed osteotomies around the desired occlusion. Additionally, manufactured cutting guides and patient-specific implants allow transfer of the virtual surgical plan into the operating room. Also, intraoperative navigation enables the surgeon to verify final positioning of the reduction. , This enables surgeons to more accurately address the underlying skeletal pathology while minimizing additional complications or the need for repeated procedures. ,
Etiology of posttraumatic malocclusion
Malocclusion following facial trauma arises for several reasons:
-
1.
Improper Reduction or Fixation : When fractures are not optimally reduced intraoperatively or if the fixation hardware fails to maintain stability, the segments can heal in malposition. ,,
-
2.
Undiagnosed or Overlooked Fractures : In an acute setting, especially with multiply injured patients, small fractures may go undetected. Even a subtle fracture in the alveolus or the condyle can lead to occlusal discrepancies. ,,
-
3.
Delayed Treatment : A delay in operating that may be caused by the patient’s systemic injuries, logistical challenges, or limited availability can increase the risk that the fracture segments begin to heal in a displaced position. ,,
-
4.
Inadequate Orthodontic/Prosthetic Considerations : In some trauma cases, the patient may have had pre-existing dental or skeletal discrepancies. If unaccounted for, the final alignment may result in an iatrogenic malocclusion that requires revision. ,
Timing of revision surgery
Revision surgery is often considered once bone healing from the initial surgery has progressed enough to allow an accurate assessment of the residual deformity. , Usually, 6 to 12 months of healing is necessary to fully evaluate the stable occlusal and skeletal relationships, unless the patient’s malocclusion is so debilitating (eg, a severe open bite that affects food intake) that urgent revision is indicated. ,, However, earlier intervention can be beneficial if the fracture was clearly malreduced, as waiting too long may result in mature scar tissue and bony healing that is more difficult to mobilize. ,
The role of orthognathic surgery principles
Modern revision strategies frequently incorporate orthognathic surgery concepts. Procedures such as Le Fort I osteotomies or BSSOs are used to reposition healed bony segments in a controlled manner. ,, Orthodontic intervention becomes crucial in many cases. The patient may require presurgical orthodontics to align the teeth so that the jaws can be repositioned optimally. Postoperative orthodontics may further refine occlusal fit. ,
Imaging virtual surgical planning

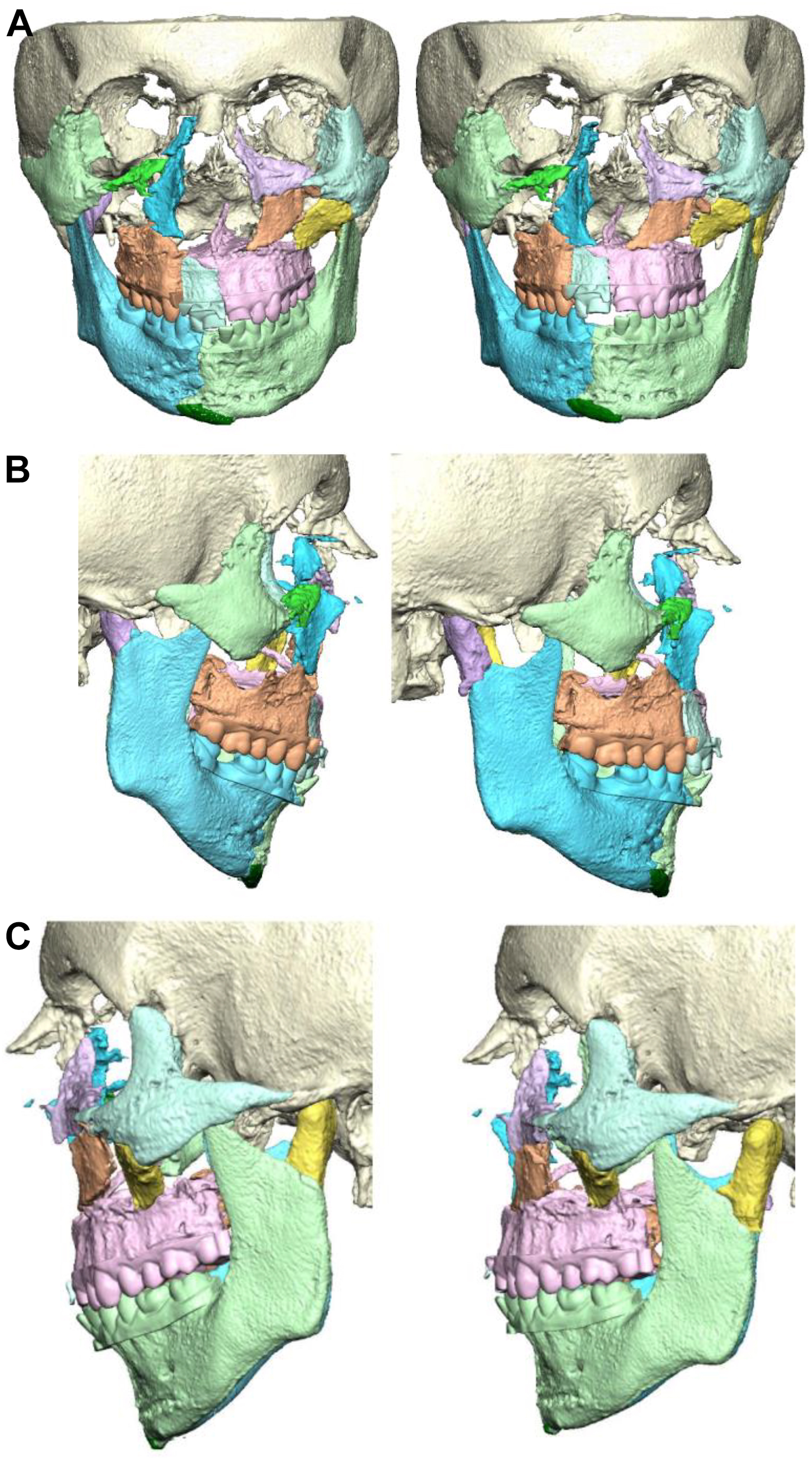

Revision surgery can be aided by advanced imaging modalities, such as cone beam computed tomography (CBCT) or high-resolution medical 3D CT. , VSP allows the surgeon to simulate different osteotomies, occlusal setups, and the need for bone grafting in a 3D digital environment , ( Figs. 1–3 ). By correlating radiographic findings with clinical and dental study models, the surgical team can plan bony movements, predict the requirement for specific hardware (palatal splints) or grafts, and predict esthetic outcomes. , This improves surgical efficiency in the intraoperative setting and can significantly reduce overall morbidity. , Another modality that can prove to be beneficial is intraoperative navigation. This allows surgeon to evaluate the degree of accuracy of the reduction during the surgery to provide feedback.

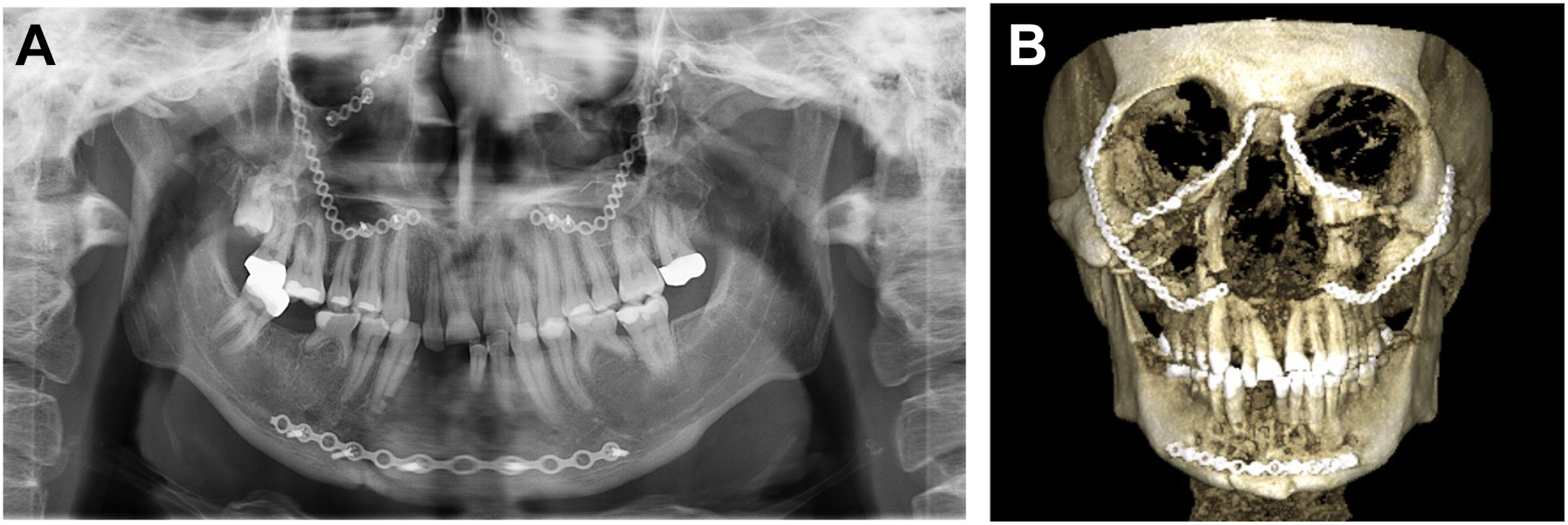

( A , B ) Patient presented for evaluation of malocclusion after open reduction and internal fixation of panfacial injuries by another surgical service.
